Solar Station for Solar Plants


Solar Station Inverter with Grundfos Solar UPM3 15-75 Circulator Pump

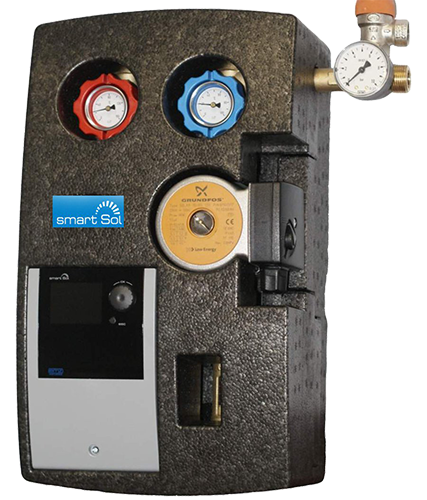

Solar Station for solar plants with
Grundfos Solar UPM3 15-75 circulator pump.


The pump may be connected in two ways.
A) operation via PWM (digital pulse-width modulation Signal): With PWM control, the pump will operate in the energy-saving mode.
B) Operation without the PWM signal, just like in the case of gear pumps

On the solar station’s cover there is an opening at which the EMZ differential controllers are perfectly suited.

Dimensions: 440 x 280 x 150 mm

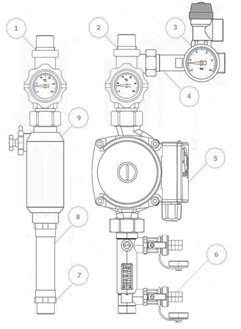

1. BALL VALVE WITH THERMOMETER (HIGH PARAMETER)
2. BALL VALVE WITH THERMOMETER (LOW PARAMETER)
3. GROUP WITH MANOMETER WITH EXPANSION TANK EXIT
4. SAFETY BAR 6 BAR
5. ELECTRONIC CIRCULATION PUMP GRUNDFOS UPM3 SOLAR 15-75
6. ROTAMETER WITH VALVES FOR FILLING AND EMPTYING SOLAR INSTALLATION
7. AIR SEPARATOR WITH MANUAL VENT
8. COUPLING (¾’’ x ¾’’ EXTERNAL THREAD)
9. SOLAR STATION INSULATION



Manual:

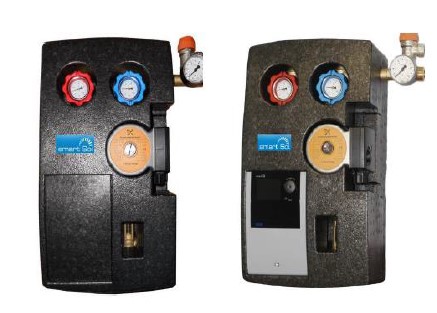

Solar station  Inverter with GRUNDFOS SOLAR PM2 Circulator Pump




Solar Station for solar plants with GRUNDFOS SOLAR PM2 circulator pump. Remotely speed-controlled High-Efficiency pump fitted with electronically commutated motor (ECM), controlled via digital pulse-width modulation (PWM) low-voltage signal On the solar station’s cover there is an opening at which the EMZ differential controllers are perfectly suited.

Dimensions: 420 x 300 x 150 mm

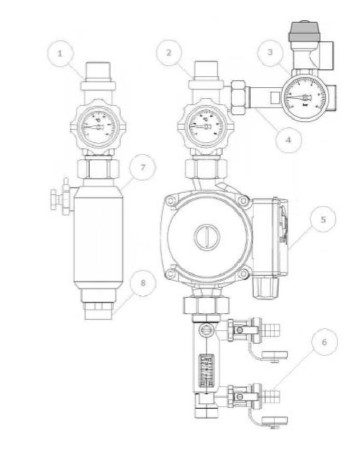

1. Ball valve with thermometer (high parameter)
2. Ball valve with thermometer (low parameter)
3. Safety valve 6 bar
4. Group with manometer
5. Electonic circulation pump grundfos pm2 15-65 130
6. Rotameter with valves for fillinh and emptying solar installation
7. Air separator with vent
8. Coupling (3/4 x5/4 eexternal thread)

Solar Station with GRUNDFOS 15-65 Circulator Pump



Solar Station for solar plants with GRUNDFOS 15-65 circulator
On the solar station’s cover there is an opening at which the EMZ differential controllers are perfectly suited.

Dimensions: 420 x 300 x 150 mm

1. Ball valve on return
2. Ball valve on supply
3. Safety varve 6 bar
4. Group with manometer
5. Circulation pump grundfos 15-65
6. Rotameter with valves For filling and emptying solar installation
7. Coupling (Φ22 x ¾ GZ)
8. Copper pipe Φ22Χ1
9. Air separator with vent
