Ecofer innovates with evidence and presents the advantages of this economic collector series!

• Range of 8 sizes available from 1.5 m2 to 2.9 m2
• Unique mounting system with embedded mobile mounts
• Lightweight design for easy transportation and installation
• One-piece anodized profiles, anticorrosion technology for ultimate seal against moisture and micro-particles in the air.
• Safety glass with high permeability.
• Mineral wool insulation and side insulation.
• Rack-type absorber (HARP) , tagged with LASER technology
• 2 stainless vents at the bottom.
• Possibility of mounting vertically or horizontally.
• Absorptive aluminum surface with black selective coating.
• ø8mm Risers.

All types are certified by: SOLARKEYMARK - SRCC

Technical data of solar collectors ECOFER ECO

High design and functionality are the main characteristics of solar collectors series ECOFER EVO.
Ecofer innovates with evidence and presents the advantages of this economic collector series!

• Range of 8 sizes available from 1.5 m2 to 2.9 m2
• Unique mounting system with embedded mobile mounts
• Lightweight design for easy transportation and installation
• One-piece anodized profiles, anticorrosion technology for ultimate seal against moisture and micro-particles in the air.
• Safety glass with high permeability.
• Mineral wool insulation and side insulation.
• Rack-type absorber (HARP) , tagged with LASER technology
• 2 stainless vents at the bottom.
• Possibility of mounting vertically or horizontally.
• Absorptive aluminum surface with blue selective PVD coating technology.
• ø8mm Risers.

All types are certified by: SOLARKEYMARK – SRCC

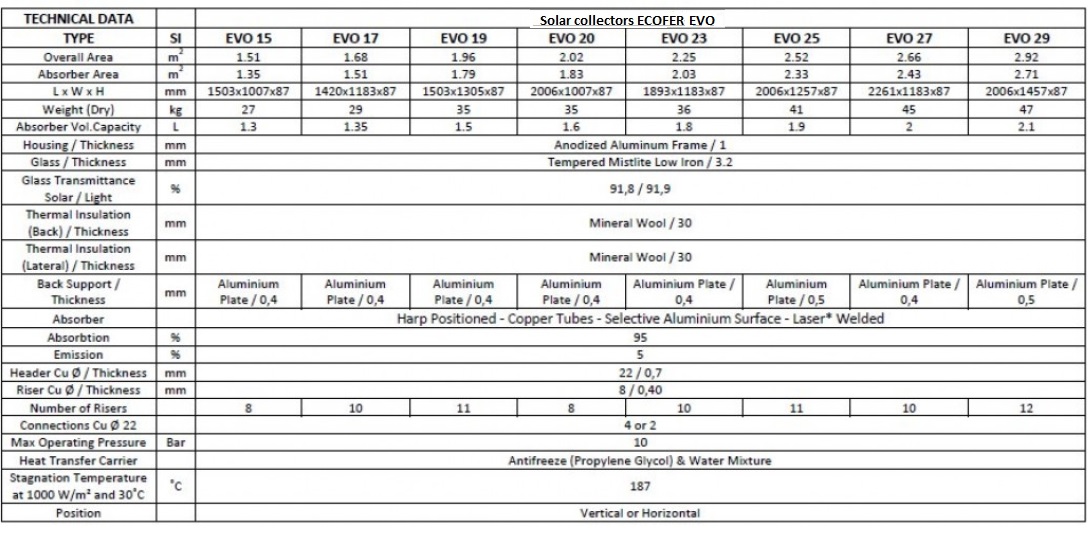

Technical data of ECOFER EVO

High design and functionality are the main characteristics of solar collectors series ECOFER ARGO.
Ecofer innovates with evidence and presents the advantages of this economic collector series!

• Range of 8 sizes available from 1.5 m2 to 2.9 m2
• Unique mounting system with embedded mobile mounts
• Lightweight design for easy transportation and installation
• One-piece anodized profiles, anticorrosion technology for ultimate seal against moisture and micro-particles in the air.
• Safety glass with high permeability.
• Mineral wool insulation and side insulation.
• Rack-type absorber (HARP) , tagged with LASER technology
• 2 stainless vents at the bottom.
• Possibility of mounting vertically or horizontally.
• Absorptive aluminum surface with blue selective PVD coating technology.
• ø15mm Risers.

All types are certified by: SOLARKEYMARK – SRCC

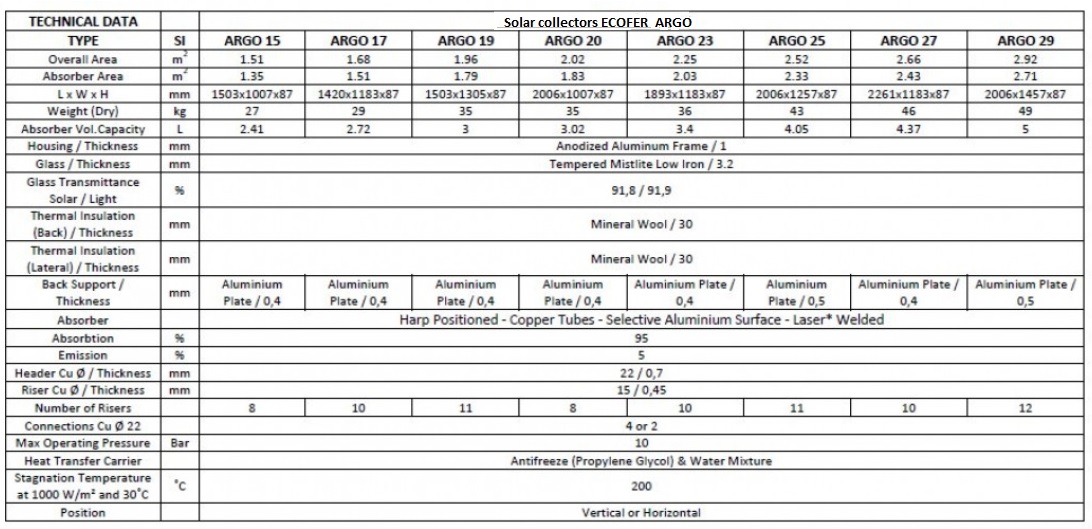

Technical data of ECOFER ARGO

Designed to meet the cold continental climate and the conditions of reduced solar radiation, is the main characteristic of solar collectors series ECOFER SOL.
Ecofer innovates with evidence and presents the advantages of the collector series able to meet its energy needs in the most extreme weather conditions:

• Range of 8 sizes available from 1.5 m2 to 2.9 m2
• Global installation system with internal movable parts
• Lightweight design for easy transportation and installation
• One-piece anodized profiles, anticorrosion technology for ultimate seal against moisture and micro-particles in the air.
• Safety glass with high permeability.
• Back and Side rock-wool insulation
• Rack-type absorber (HARP) , tagged with LASER technology
• 4 stainless hidden vents
• Possibility of mounting vertically or horizontally.
• Absorptive aluminum surface with blue selective PVD coating technology.
• ø8mm Risers.

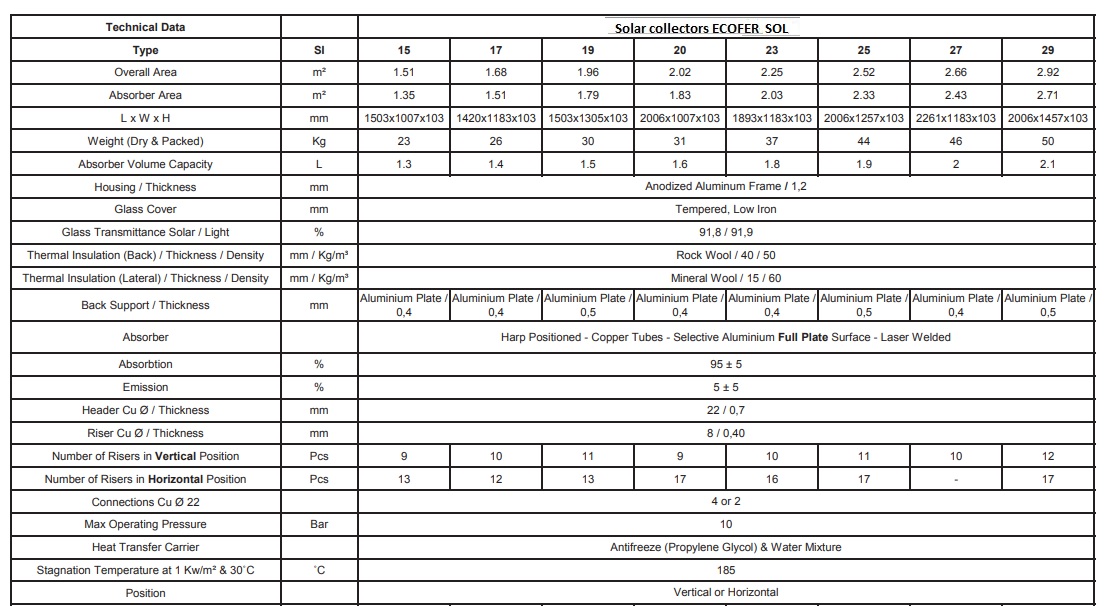

Technical data of ECOFER SOL

Excellence for their extreme mechanical and thermal strengths, and offering absolute waterproofing and eliminating any heat loss due to the homogeneous construction, are the main characteristic of solar collectors series ECOFER NAVI.
Ecofer innovates with evidence and presents the advantages of this collector series:

• Range of 3 sizes available from 1.5 m2 to 2.5 m2
• Installation system with internal, stable thread.
• Lightweight design for easy transportation and installation
• One-piece tray, anticorrosion technology for ultimate seal against moisture and micro-particles in the air.
• Safety glass with high permeability.
• Back and rock-wool insulation
• Rack-type absorber (HARP) , tagged with LASER technology
• 2 stainless hidden vents
• Possibility of mounting vertically or horizontally.
• Absorptive aluminum surface with blue selective PVD coating technology.
• ø8mm Risers.

Technical data of ECOFER NAVI
