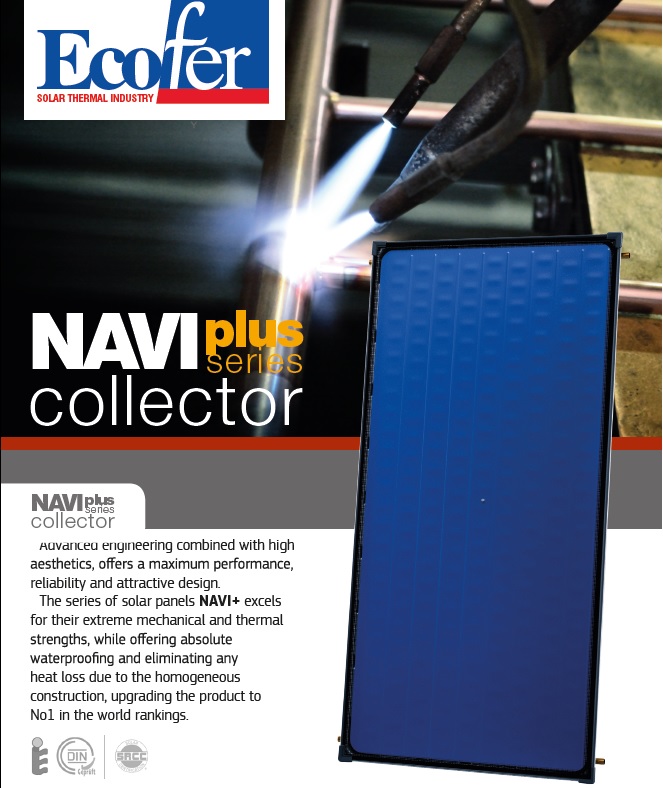

Solar collectors ECOFER NAVI
Ecofer produces the new range of solar collectors, ECOFER NAVI.

Excellence for their extreme mechanical and thermal strengths, and offering absolute waterproofing and eliminating any heat loss due to the homogeneous construction, are the main characteristic of solar collectors series ECOFER NAVI.
Ecofer innovates with evidence and presents the advantages of this collector series:

  • Range of 3 sizes available from 1.5 m2 to 2.5 m2
  • Installation system with internal, stable thread.
  • Lightweight design for easy transportation and installation
  • One-piece tray, anticorrosion technology for ultimate seal against moisture and micro-particles in the air.
  • Safety glass with high permeability.
  • Back and rock-wool insulation
  • Rack-type absorber (HARP) , tagged with LASER technology
  • 2 stainless hidden vents
  • Possibility of mounting vertically or horizontally.
  • Absorptive aluminum surface with blue selective PVD coating technology.
  • ø8mm Risers.
All types are certified by: SOLARKEYMARK – SRCC

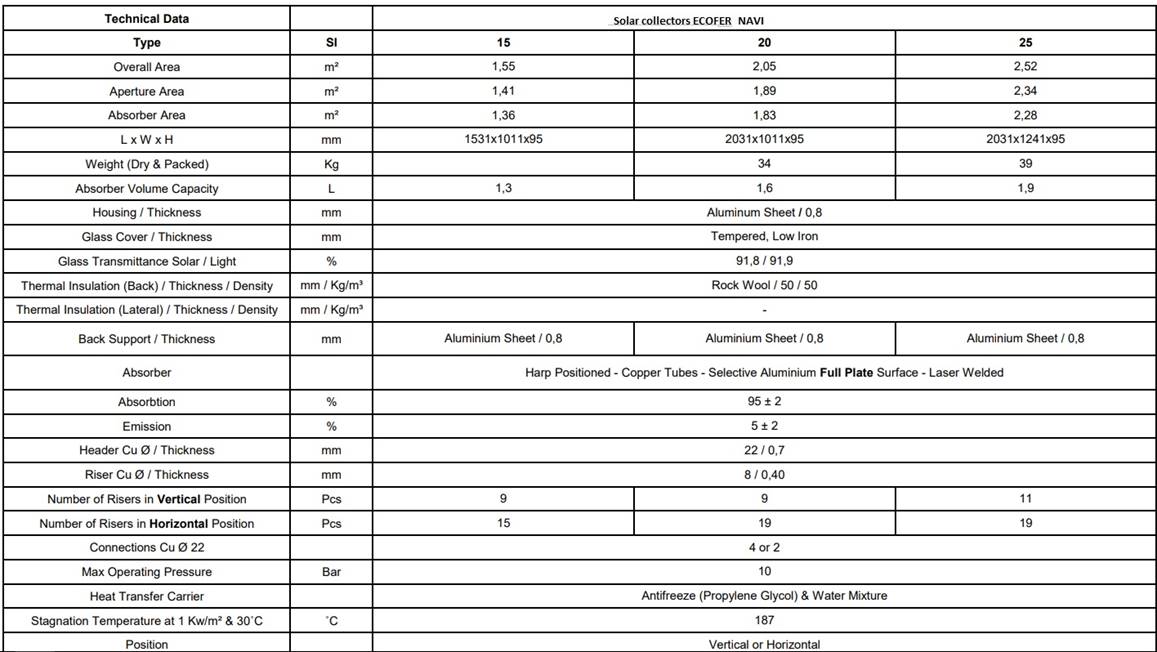

Technical data of ECOFER NAVI
